Home > Gantry > gantry type vmc machine

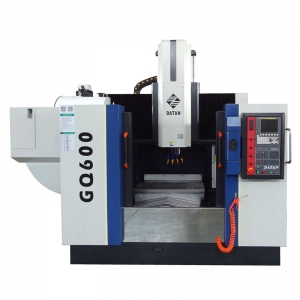

gantry type vmc machine

Modle:GQ600

HOT SALE
Features:
cnc machine center , but structure of gantry type, prices similar with VMC
Packing:
Standard
Delivery Time:
45 Working Days
Key Specification:
  • 1000
    X axis travel/mm
  • 600
    Y axis travel/mm
  • 500
    Z axis travel/mm
  • 10-10000
    Spindle speed/rpm
  • 1000*600
    Table size/(L*W)
  • Fanuc 0i MF-M5
    Control system
Product Details Specification

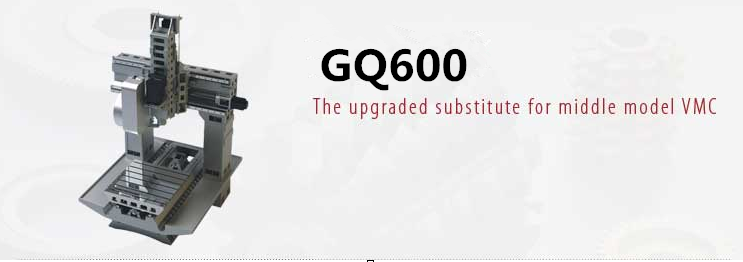

MODEL:GQ600:Small Gantry milling machine Can instead of large Vertical CNC Machine Center, With Gantry Structure but Price of Vertical CNC Machining Center!

small gantry milling machine

small gantry vmc

small gantry milling machine
Gantry structure is close structure;
it is more stable than normal open
C structure.

small gantry milling machinesmall gantry milling machine

small gantry milling machine avoids the weakness in normal structure,
the depth is 50% less, that means
double in rigidity.
small gantry vmc
We add more guiderail to solve the problem of weakness
in ram parts, it improve the rigidity more, doubled the
whole machine’s rigidity for small gantry vmc.
small gantry milling machine
Rapid Tools Changer innovated by Datan CNC,
approved by National Patent.
It fixe the Tools Changer on Saddle, moving with
spindle at same time, it is less time cost in tool
changing.
small gantry milling machine
1:1.2 work table customized for Mold machining, it is
designed in T shape, the Clamp position in sides, provide
more wide range for work piece, make it more suitable
for mould production, also to the square san round shape
parts.
