Home > Milling > Gantry type milling machine
Gantry type milling machine

Modle:GQ700

Features:
The structure of gantry type, with prices of VMC
Packing:
Wooden Case,Standard packing
Delivery Time:
20 Working Days
Key Specification:
  • 1100
    X axis travel/mm
  • 700
    Y axis travel/mm
  • 600
    Z axis travel/mm
  • 10000
    Spindle speed/rpm
  • 1100*700
    Table size/(L*W)
  • FANUC-0i mate MD
    Control system
Product Details Specification

gantry cnc milling machine

gantry cnc milling machine

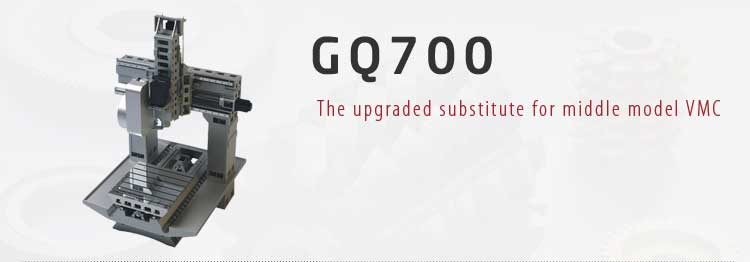

GQ700 gantry cnc milling machine is the newly developed type
from Datan CNC in high rigidity and high efficiency, it is the upgraded
substitute for middle cnc milling machine, it is the terminator for 1000x600mm gantry cnc milling machine.
gantry cnc milling machine
Gantry structure is close structure;
it is more stable than normal open
C structure.
gantry cnc milling machine
The gantry structure avoids the
weakness in normal structure,
the depth is 50% less, that means
double in rigidity.
gantry cnc milling machine
We add more guiderail to solve the problem of weakness
in ram parts, it improve the rigidity more, doubled the
whole machine’s rigidity.
gantry cnc milling machine
Rapid Tools Changer innovated by Datan CNC,
approved by National Patent.
It fixe the Tools Changer on Saddle, moving with
spindle at same time, it is less time cost in tool
changing.
gantry cnc milling machine
1:1.2 work table customized for Mold machining, it is
designed in T shape, the Clamp position in sides, provide
more wide range for work piece, make it more suitable
for mould production, also to the square san round shape
parts.
