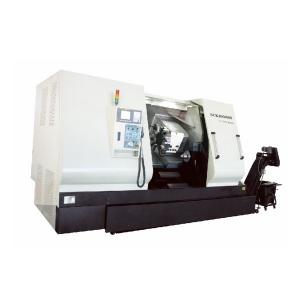

Model SCK400(SCK600) x 650A/B CNC Lathe for sale is Double coordinates
2 axis simultaneous, semi-closed loop control of CNC lathe.the
frame use whole cast structure body,slant 30°saddle structure
arrangement,Linear Guideway,Drived by Ballscrew.Great Dynamic
characteristics,High precision, Strong rigidity.Full covered Guard
Protection,Internal sliding door from Left Side, Independent Chip
gather water tank,with good chip removal,CNC Controller Using
Mitsubishi E60(FANUC 0i mated TD),longitudinal and transverse AC
Servo Motor.
Applicable for shaft parts size under Ф630×650（㎜）,disk shapes parts size under Ф320mm,Max.Swing dia. On slide Ф500mm.
Machining the short shaft(or disk shapes) parts with complicated geometrical shape,various size,High accurancy. Machining the parts of Cylinder, cone surface, stepped surface, spherical and others all kinds parts with surface of revolution.
In 30 degree slant bed structure, can reduce the clearance by the self weight of workpiece.
the New SCK400(SCK600) lathe for sale gains more precision.
Adopting high quality straight rolling guide,can meet the demand in
high speed and high efficient works,less friction and less distortion.
Improving processing precision,can guarantee the precision stablity in
cutting works.
The whole machine in high rigidty, the cutting power and
the weight of workpiece are in same way, it makes spindle
more stable, and less quiver in cutting.In heavy cutting,
keeps the high precision,and cutting the chips fully, easier
to remove the chips
The Spindle box adopts system in preventing distortion of heat,keeps
the stablity of spindle.
Spindle adopts imported bearing(NSK From Japan), and match with
the German KLUBER senior grease, high precision, strong rigidity, long
service life
Rely on high precision and large diameter (Ф160 mm) teeth plate
centering hydraulic+servo Tool Turret, with high precision, fast
inversion,and two-way choice Tool to the nearest function.Few
breakdowns,and long service life.
The Optional programming tail stock in high precision,high
rigidity,works on long type work piece perfectly.
Slant bed structure with guide protection,it protects the screw
and guide, and keeps the chips away from machine as well.
The optional chips conveyor, makes the machine more clear,
and more easier to operate. lathe for sale
Adopts 12 or 15 inch(Choose one)Hollow/Solid hydraulic Power
chuck,loading convenient and reliable, reduce the operator labor
intensity
