Home > Lathe > SKQ Series CNC Lathe

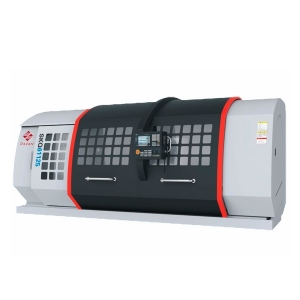

SKQ Series CNC Lathe

Modle:SKQ Series

Features:
Packing:
Wooden Case,Standard packing
Delivery Time:
40 Working Days
Key Specification:
  • 3-350
    Spindle speed/rpm
  • GSK980
    Control system
  • 1000-1600
    Capacity Max. Swing
  • 2000-12000
    Capacity Max.Workpie
  • Horizontal
    Tool Machine's type
Product Details Specification

Work pieces weight load: 8 tons

Comparing with others Supplier:

Spindle,Centre for Tailstock and Machine Guideway Width More Larger, So that Loading More.

For All our Lathe Machine,The guideway of Machine body,XZ Axis carriage have been treated by quenching and Artificial precision scraping.

Machine Usage and Characteristics:

It adopts with Fanuc,Siemens or GSK controller,have programming control(pc)and CRT Monitor,with line and curve interpolation.lathe machine price.
X,Z feeding with AC servo mortors,pulse coder,the guide width is 780mm,the body made of high quality cast iron after high frequency quenching.
Saddle guide with plastics sticking, has little friction.lathe machine price
the Spindle adopts with CVT device, in tri-supporting structure, with super rigity.
It can work on wide range,round,inner hole,face,slot,conical surface,chamfer,cone,cylinder screw,curve surface.

Note:

If need Economic type Manual Type without CNC Controller?

Yes. Available !

If need Larger Swing dia. Gap-Bed lathe?

Yes. Available !

Any others Special Requirements?

Yes. Available !



Your JUST Tell us what you Really need.and next,we will do ALL for you !
