Home > Milling > CNC machining center
CNC machining center


The new standard of vertical machining center
Wooden Case,Standard packing
Delivery Time:
26 Working Days
Key Specification:
  • 850
    X axis travel/mm
  • 500
    Y axis travel/mm
  • 550
    Z axis travel/mm
  • 8000
    Spindle speed/rpm
  • 1000*500
    Table size/(L*W)
  • Siemens 808D
    Control system
Product Details Specification
  • In the 6 months’s visit and study for over 20 machine tool manufacturers, YAMAHA choosed Datan. And trough the effort of experts in Datan, the world’s highest level of modernization, the fastest production efficiency, the best quality and the most stable production line of piano pillar was born. ……

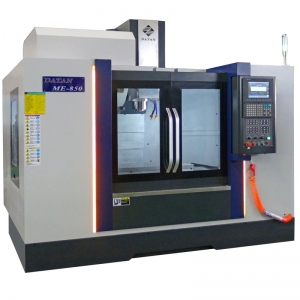

  • ME850, as the pioneer of 850 vmc in China, has had thousands of customers. It x/y/z axis is 850/500/550mm,with Syntec, Siemens, Fanuc, etc.are available, linear guideway, Armtype 24 tools(opt.), and 6 rams design as well as economical price. In this processing video, it is doing plane and hole milling for a wheel hub(material:cast aluminium). ……
  • One week india trip ---Visit CNC machine center agent factory ……
5 axis vmc machine
Datan CNC in compact vertical
machine center 13 years, ME850 can be configured 5 axis vmc machine.

Video link: 5 axis vmc machine

5 axis vmc machine
Avoid the distortion in A.T.C. that caused the tools and
spindle not in proper alignment.
Avoid the change in accuracy in worktable
Improving 40% in column rigidity
Rolling structure in Z axis
5 axis vmc machine 5 axis vmc machine
It adopts 6 rams designs in worktable,
20% rigidity more than normal design
in worktable.
Materials are in superior quality, best
cost-efficient.(5 axis vmc machine)
5 axis vmc machine 5 axis vmc machine
Avoid the accuracy loss caused by worn guiderail,
it keeps the machine in well maintenance, suitable to
high speed machining.
5 axis vmc machine
Best solution in improving rigidity for Z axis
by short Throat Depth,
Fewer quivers on spindle box in heavy load
cutting.(5 axis VMC milling machine)
5 axis vmc machine
It is more stable when Datan CNC adopts
the new Nitrogen Weight Balance system,
Now it is more fit to high speed machining.
5 axis vmc machine
This machine (5 axis VMC milling machine)    has 8 supporting feet
plus thick honeycomb machine body
structure, less distortion caused by
weight, make the base more stable.

5 axis vmc machine
