Home > Gantry > Gantry type machining center
Gantry type machining center


The structure of gantry type, with prices of VMC
Wooden Case,Standard packing
Delivery Time:
20 Working Days
Key Specification:
  • 1100
    X axis travel/mm
  • 700
    Y axis travel/mm
  • 600
    Z axis travel/mm
  • 10000
    Spindle speed/rpm
  • 800*600
    Table size/(L*W)
  • FANUC-0i mate MD
    Control system
Product Details Specification

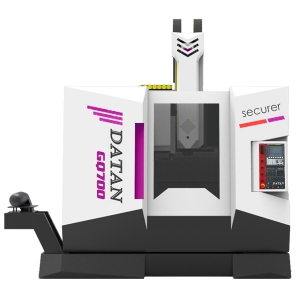

  • The GQ700 back-door type machining center is No.1 in China. And it is one of Datan's pioneer machine tools. The X/Y/Z axis:1100/700/600mm, of high precision and high speed, which is particularlly suitable for mould processing. GQ series machine to0ls are for high-end users, and now it is moving fast toward Russia and Turkey. ……
large cnc machine
GQ700 large cnc machine is the newly developed type
from Datan CNC in high rigidity and high efficiency, it is the upgraded
substitute for  large cnc machine, it is the terminator for 1000x600mm
 large cnc machine.
large cnc machine
Gantry structure is close structure;
it is more stable than normal open
C structure.
large cnc machine
The gantry structure avoids the
weakness in normal structure,
the depth is 50% less, that means
double in rigidity.
large cnc machine
We add more guiderail to solve the problem of weakness
in ram parts, it improve the rigidity more, doubled the
whole machine’s rigidity.
large cnc machine
Rapid Tools Changer innovated by Datan CNC,
approved by National Patent.
It fixe the Tools Changer on Saddle, moving with
spindle at same time, it is less time cost in tool
milling machine

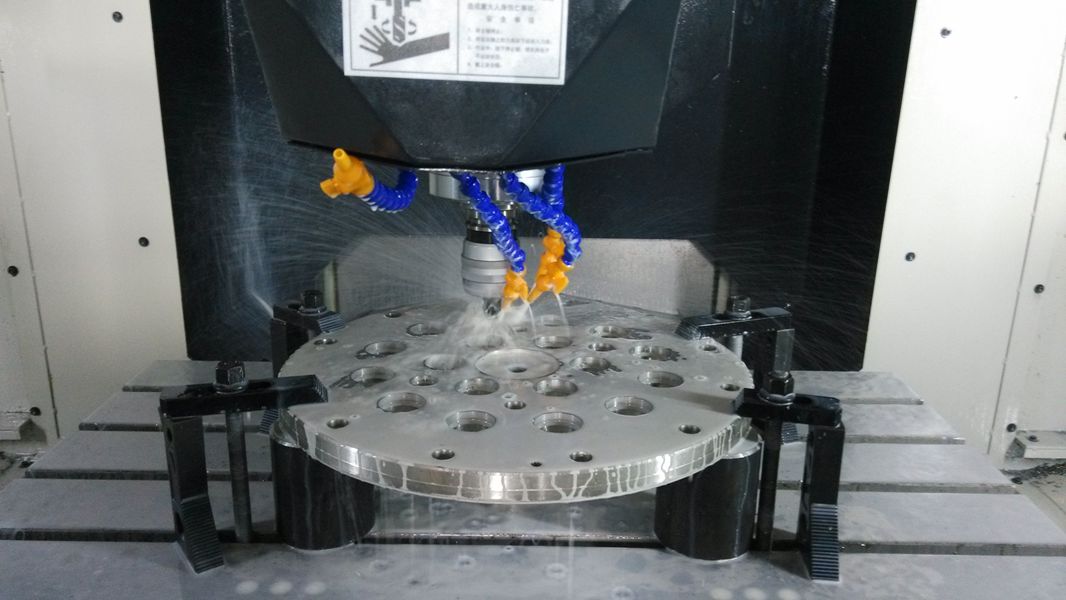

1:1.2 work table customized for Mold machining, it is
designed in T shape, the Clamp position in sides, provide
more wide range for work piece, make it more suitable
for mould production, also to the square san round shape
