Home > Gantry > cnc gantry drilling machine

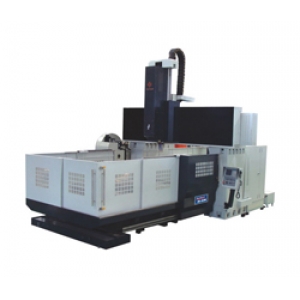

cnc gantry drilling machine

Modle:GL2240

Features:: high speed and high rigidity

Packing:: Wooden Case,Standard packing

Delivery Time:: 60 Working Days

Key Specification:

4200
X axis travel/mm
2200
Y axis travel/mm
1000
Z axis travel/mm
6000
Spindle speed/rpm
4000*1800
Table size/(L*W)
FANUC-0iMD/Mitsubishi M70
Control system

Product Details Specification

Absorb advanced CNC machine technology and manufacturing standards from United states and Japan. The worktable eith high rigid roller-type guideways has ensured the machine excellent

rigidity and stability. With gear plate precise positioning, the
NC rotary table can keep a ong-term accuracy in this cnc gantry drilling machine.

cnc gantry drilling machine

cnc gantry milling machine GL2230
3200*2200*1000
cnc double column machining center GL2740
4200*2700*1000
gantry milling machine GS1822
2200*1700*1000
Gantry Type Milling Machine GS1830
3000*1700*1000

Name *		Modle:
Country *		Phone *
Email *
Comments or Questions*

Model No.cnc gantry drilling machine		GL-2230	GL-2240	GL-2730A
Capacity	X axis travel/mm	3200	4200	3200
	Y axis travel/mm	2200	2200	2700
	Z axis travel/mm	1000	1000	1000
	Spindle nose to worktable/mm	250-1250
Worktable	Table size(L*W)	3000*1800	4000*1800	3000*2300
	Gate width/mm	2200	2200	2700
	T-slot(widthnumbersspan)	229200	229200	2211200
	Max load on the table/kg	12000	16000	12000
spindle	Spindle speed/rpm	ZF two speed gearbox(1:1/1:4)/6000(4000)
	Spindle taper	7/24 Taper BT50
	Spindle motor/kw	15/18.5
Feedrate	X,Y axis rapid traverse(M/min)	12	10	12
	Z axis rapid traverse(M/min)	10	10	10
	Max cutting feedrate(mm/min)	10-7000
A.T.C	Toolmagazine capacity(opt)/pc	20/24/32/40/60
Optional	Max exterior tool diameter/mm	φ200
	Max tool length/mm	350
	Max tool weight/kg	20
	Tool change time/sec(T-T)	3.5
Accuracy	Axis positioning accuracy/mm	0.025<5000
Accuracy	Axis repeatability positioning accuracy/mm	0.015
Machine size	Power requirement/KVA	40
	Space requirement (L×W)	7750*4650	9900*4650	7840*5150
	Machine height/mm	4800	4800	4850
	Machine weight(T)	36	40	41
	Control system	FANUC-0iMD/Mitsubishi M70
